Peugeot RCZ


Debut: 2010
Maker: Peugeot
Predecessor: No



 Published on 22 Mar 2010
All rights reserved.

RCZ is the French response to Audi TT

When Peugeot displayed the RCZ concept car in 2007 Frankfurt motor show, I think not many people believed it would be put into production. You know, in the past 30 years or so Peugeot built many radical concept cars but never put one into production. While most other manufacturers use concept cars to showcase new design theme or simply to preview the next production models, Peugeot's concept cars are always decoupled from the production side, strangely. They seemed to be created just for the fun of motor show spectators. Having disappointed for so many years, I didn't expect any exception for the RCZ concept.

To our surprise, two and a half years later the production RCZ stands in front of us. Moreover, its exterior and interior design is virtually the same as the show car. This signals a significant change in the product strategy of Peugeot. The dancing lion used to be rather conservative. Now in the attempt of migrating upmarket, it needs more image-boosting models - certainly more than the lukewarm 407 Coupe. RCZ will be the first one. This car is the French response to Audi TT. It is a very design-led product, or what people called "hairdresser's car".


Visual impact is greater than Audi TT

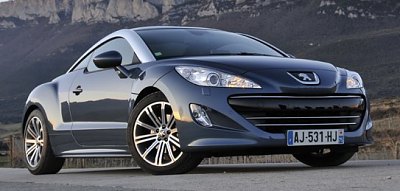

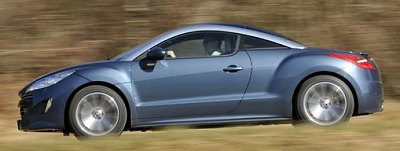

Unquestionably, style is by far its greatest strength. Everything else is less significant. The RCZ not only looks exactly like a concept car happened on the road, its visual impact is, dare I say, greater than that of Audi TT ! Not believe ? Look at that cab-forward and wide-track proportion, that Zagato-style double-bubble roof and rear screen, those brushed aluminum roof rails and that kick at each shoulder line. They deliver a stronger message about style than the Audi masterpiece. Its road presence is absolutely stunning.

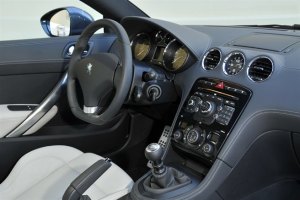

Unfortunately, everything else is rather ordinary. Take the dashboard for example, it comes straight from 308, although the center air-vent is replaced by an analogue clock, oddly. It's an upmarket piece of work by the standard of hatchbacks, but not quite in the league of Audi TT, where you will find more stylish gauges and more extensive use of real aluminum decors. Peugeot's version of flat-bottomed steering wheel is not as tasteful as Audi's. Its seats are not as classy too. One thing it does match the Audi: the tiny rear seats are purely cosmetic. Head and legroom are barely enough for small kids. For this reason, the Peugeot coupe will be compared with 2-seaters like BMW Z4, Mercedes SLK and Nissan 370Z, although its closest rival is still Audi TT.


308-based cabin is so-so


Price-wise, the Peugeot coupe undercuts all the above rivals by considerable margin. Its price starts from £20,000 and tops out at £25,000, which is about the entry point of Audi TT. Mazda MX-5 is the only cheaper alternative (at sub-£20,000), but it is no where as substantial or as visually attractive. Peugeot found a sweet spot in the marketplace.

However, the keen price comes from the simplicity of its mechanicals. This coupe is built on the 308 platform. In other words, it is front-wheel drive and rides on cheap suspensions consisting of MacPherson struts up front and semi-independent torsion-beam at the rear. To save the game, Peugeot lowers its ride height by 20mm, widens its front and rear tracks by 54mm and 72mm respectively. Its center of gravity is 40mm lower than the sportiest 308 hatchback, thanks to the lowered roof, ride height and aluminum roof rails. Besides, the top 200hp model comes with an additional tower brace reinforcing the front suspensions. Springs and dampers are considerably stiffer than the regular 308's. Moreover, to improve steering feel, the electric power steering is reverted to hydraulic one.


Rear spoiler raises at speed to reduce lift

The TT-style body profile is likely to generate a great deal of aerodynamic lift at speed, so Peugeot equipped it with a pop-up rear spoiler, which adjusts its height between 2 positions depending on speed.

Engine range also comes from the modest 308. You have the choice of 3 engines: 156hp 1.6 DI turbo, 200hp high-pressure version of the same engine and 163hp 2.0HDi turbo diesel. Even the 200hp engine cannot propel the car much beyond 144 mph and 0-60 mph under 7.2 seconds. Such performance is definitely not as wild as its looks suggested. In isolation, the BMW-sourced engine is not bad. It displaces only 1.6 liters yet produces 200 horsepower. It differs from other versions of the BMW engine by using variable valve timing on both intake and exhaust, and "Valvetronic" variable intake valve lift simultaneously (previous versions have intake VVT only and no Valvetronic). Its maximum torque of 188 lb-ft can be lifted momentarily to 203 lb-ft, thanks to an overboost up to 1.2 bar, to aid overtaking. It delivers power smoothly and linearly. Its exhaust sounds quite sporty once you rev it to the upper half of rev range. However, owing to the 1300 kilograms it needs to haul, the 1.6 turbo engine feels exactly as it is - a small engine squeezed to work on a large car. Floor down the throttle, acceleration feels soft initially. It takes a moment to gather rev and get into its sweet zone, which spans from 2200 to 6000 rpm, by then it feels reasonably punchy. You will enjoy the shift quality and the closely stacked ratios of the 6-speed manual box. Nevertheless, the powertrain combination is no match with Audi's 2.0TFSI engine and DSG gearbox.

Power is modest; Handling feels more hot hatch than sports car.

Because of its mechanical basis, the RCZ drives more like a hot hatch than a thoroughbred sports car. Its handling is neat, with plenty of grip from its 235/45 tires, well-contained body roll and precise steering. Its balance is quite neutral thanks to the endless front-end grip. However, it plays neither power slide like a rear-drive sports car nor lift-off oversteer like the old 205GTi. All it does is grip, grip and grip hard on the tarmac. Ultimately, when it runs out of grip, it runs into terminal understeer like most hot hatches – the nose-heavy diesel car is especially obvious. Some may prefer such a precise and secured driving manner, but driving enthusiasts will find it quite boring to drive. Regarding ride quality, the RCZ feels firmly suspended. It's by no means uncomfortable, but on rough surfaces the wide tires and semi-independent suspension do transmit more shocks and noise into the cabin than Audi TT, contributing to a less sophisticated impression.

We wish the RCZ could have had more firepower and more driver interaction in its handling. However, this would have required to develop a dedicated platform for the car, which means the keen prices infeasible. By keeping its price in the range between £20,000 and £25,000, the RCZ is safe from competition. It may lure many buyers who put style over driving excitement. Peugeot believes it could find 15,000 such customers every year. Production is to be subcontracted to Magna-Steyr in Austria. Peugeot had a good time of outsourcing production of 206CC, which was a runaway success. RCZ might be the same.
Verdict:
 Published on 10 Dec 2013
All rights reserved.
RCZ R

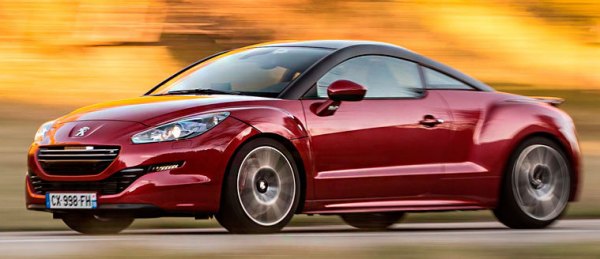

Stylish and affordable, Peugeot RCZ has been seen as a low-cost alternative to Audi TT since its introduction nearly 4 years ago. Earlier this year, it was given a facelift (mainly a new corporate grille) to extend its lifespan, but more important is a new range-topping performance model launched at the year end. The RCZ R is developed with the help of Peugeot Sport, the company's motorsport department. It has adopted many modifications to enhance performance and handling. The aim is to transform the RCZ into a real driver's car, something we declined to say to the regular car. Can it succeed? Let's see what has been done…

Under the bonnet, the engine is still based on the BMW (Mini) 1.6-liter DI turbo like the existing 200 hp model, but this version is identified as EP6CDTR, where the last letter implies the racy treatment. Its twin-scroll turbo is larger in order to produce higher (but unspecified) boost pressure. This also necessitates the compression ratio to be dropped from 10.0:1 to 9.2:1. Its forged aluminum pistons are supplied by Mahle, being lighter and stiffer than the usual items, and they are cooled by oil jets. Likewise, the Mahle connecting rods are also designed to withstand higher load and rev. The exhaust manifold is now made of lightweight stainless steel, which also improves gas flow. The engine block is heat treated before machining to improve strength. These modifications lift its output dramatically to 270 horsepower at 6000 rpm, making it the most powerful 1.6-liter engine in production. I guess not even BMW could imagine what Peugeot Sport has achieved. Moreover, the engine has lost little flexibility. Turbo lag is surprisingly subtle, and its peak torque of 243 lbft is available from 1900 to 5500 rpm.

On the road, this transforms the RCZ into a fast car finally. The small engine feels pretty strong, but unlike some performance engines with big turbo, its delivery is very linear and it is eager to rev until the 6800 rpm cut-out. The 0-60 mph time of 5.6 seconds is credible, but in the cabin you would swear it must be quicker because the exhaust note is so loud and sporty. It makes an Audi TT S tamed in comparison. The clean and accurate gearshift also encourages you to use the rev range to the full.

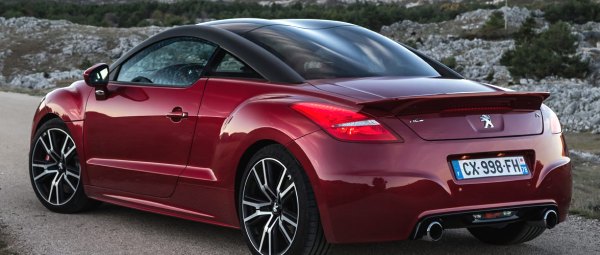

We don't have too much expectation on the 308-based front-wheel-drive chassis, but once again the RCZ R is found to be surprisingly good. Peugeot Sport retuned its springs, dampers, anti-roll bars and suspension geometry. The front and rear are now 14 and 44 percent stiffer respectively. The ride height is dropped by 10 mm and tracks are widened a bit. Larger yet lighter 19-inch wheels are shod with higher performance tires and accommodate larger brakes – the front employs 380 mm discs and Alcon 4-pot calipers. Outside, a large fixed rear spoiler reduces lift at high speed.

However, the most influential is the adoption of a Torsen LSD to the front axle. Without it, the RCZ R would have been impossible to tame its extra power. On the road, the LSD works brilliantly, limiting wheel spin and reducing torque steer to merely gentle tugs in your hands even on heavy throttle. It produces strong traction and keeps the nose pointing to the right direction. The turn-in is sharp and accurate. The steering feels heavier and more direct than the regular RCZ's. The body control is superb. While the ride is firm, its damping is actually more composed than the regular car. It feels as well controlled as a Renault Megane RS 265, just lacking the latter's gifted talent of throttle steer.

The Megane or a rear-drive Toyota 86 / Subaru BRZ is more entertaining to drive, of course, but they can't quite match the Peugeot's style and sense of occasion. Audi TT, BMW Z4 and Mercedes SLK are less fun to drive. Among its rivals only Porsche Boxster/Cayman is clearly superior, but this is also reflected on the price tag. RCZ R has found the sweet spot.
Verdict:
Specifications





Year
Layout
Chassis
Body
Length / width / height
Wheelbase
Engine
Capacity
Valve gears
Induction
Other engine features
Max power
Max torque

Transmission
Suspension layout

Suspension features
Tires
Kerb weight
Top speed
0-60 mph (sec)
0-100 mph (sec)
RCZ 2.0HDi
2010
Front-engined, FWD
Steel monocoque
Mainly steel
4287 / 1845 / 1359 mm
2612 mm
Inline-4, diesel
1997 cc
DOHC 16 valves
VTG turbo
CDI
163 hp / 3750 rpm
251 lbft / 2000-3000 rpm

6-speed manual
F: strut
R: torsion-beam
-
235/45R18
1370 kg
134 mph (c)
8.2 (c)
-
RCZ 1.6THP (200hp)
2010
Front-engined, FWD
Steel monocoque
Mainly steel
4287 / 1845 / 1359 mm
2612 mm
Inline-4
1598 cc
DOHC 16 valves, DVVT, VVL
Turbo
DI
200 hp / 5800 rpm
188 lbft / 1700 rpm (overboost 203 lbft)
6-speed manual
F: strut
R: torsion-beam
-
235/45R18
1297 kg
144 mph (c)
7.2 (c)
-
RCZ R
2013
Front-engined, FWD
Steel monocoque
Mainly steel
4294 / 1845 / 1352 mm
2612 mm
Inline-4
1598 cc
DOHC 16 valves, DVVT, VVL
Turbo
DI
270 hp / 6000 rpm
243 lbft / 1900-5500 rpm

6-speed manual
F: strut
R: torsion-beam
-
235/40ZR19
1280 kg
155 mph (limited)
5.6 (c) / 5.9*
13.0*




Performance tested by: *Sport Auto
