TVR Griffith and Chimaera (1992)

Having sailed through the stormy Grantura era (1958-79) and stabilized in the Wedge era (1980-91), TVR entered its golden period in the 1990s under the direction of its new boss Peter Wheeler. A trio of new cars – Griffith, Chimaera and Cerbera – promoted it to be a desirable sports car brand in the same breath as Lotus and Porsche, and lifted its sales to an all-time high of 2,000 cars a year in the latter half of the decade!

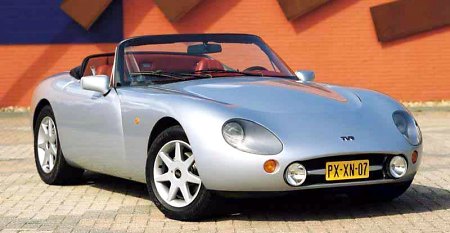

The Griffith was the first to arrive in 1992. It was the first TVR model designed fully to the philosophy of Wheeler, although the latter had arrived 10 years earlier. No TVRs before could be described as beautiful, but the new Griffith really stunned with its pure, modern yet classical shape. As always, the car employed a lightweight multi-tubular backbone chassis and full glass-fiber body shell. Glass-fiber panels were (and still are) impossible to achieve the tight production tolerances of metal ones. As a result, their varying assembly gaps usually led to a cheap, low-quality feel. However, TVR's in-house designer/engineer John Ravenscroft cleverly avoided the problem by overlapping one panel with another. For example, the front edge of the doors slipped under the front fenders so that you cannot see the panel gaps. Similarly, the bonnet slipped under the one-piece shell that included the nose and fenders. The result was a remarkably clean and uncluttered piece of sculpture. In addition to the 1960s-style classical shape, the new Griffith was easy to fall in love with.

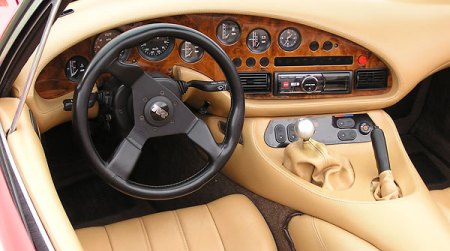

Inside, the cabin was both stylish and special. Wooden dashboard and leather upholstery continued to make it look properly British. The simple manual soft top dropped easily into the space behind the seats.

The Griffith rode on classic double-wishbone suspensions at all corners. Unlike Porsche and Lotus, you would not get much modern technologies on the TVR. Peter Wheeler hated electronics like ABS and traction control (even power steering was not offered in the first few years) – perhaps he actually hated the development costs involved – so the Griffith was definitely more demanding to drive than its established rivals. This was especially true as the car was so light and powerful. It weighed just over a ton, but it was served with some very powerful tuned Rover V8s, including 240 hp 4.0-liter, 280 hp 4.3-liter and eventually 340 hp 5.0-liter unit. Unsurprisingly, performance on straight line was mind-blowing. The 4.3 model was measured by Autocar to sprint from 0-60 in 4.7 seconds and 0-100 mph in 11.1 seconds, while 5-liter model (Griffith 500) was even good for 4.2 and 10.2 seconds respectively. At that time, it was faster than any production Ferraris, including F355 and 512TR!

The combination of strong torque and light back end means the Griffith struggled for traction, although a skilled and disciplined driver would be able to tame it. Its unassisted steering was very heavy at low speed. The suspension was stiffly sprung, while the damping lacked fineness. It demanded the driver to put more effort and concentration onto the driving. The V8 clearly overwhelmed the chassis, especially the 5-liter. However, it was fun to drive in a raw way. The V8 sounded fantastic, and the straightline performance alone was a good reason to buy it. In addition to the beautiful looks, the Griffith was able to serve TVR for a full decade without much revision. In total, over 2300 units were built.

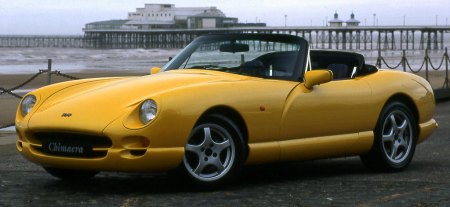

Running in parallel to the Griffith was Chimaera. It was basically a more civilized version of Griffith, with softer suspension setting, a larger boot, more traditional styling and some lower power engines to attract less hardcore drivers. Much of the underpinning was shared with its sister. While the Griffith was compulsory with 5-liter engine from 1994, the Chimaera still offered a 240 hp 4.0-liter and 285 hp 4.5-liter alternatives at lower prices. With less power to cope, it was easier to drive yet still provided giant-killing performance. That was why it was capable to outsold its sister by 3 to 1 in later years. In total, over 5000 Chimaeras were built, making it the most popular TVR of all time.


Griffith 4.3
Griffith 500
Chimaera 4.0
Chimaera 450
Year of production
1992-2002 (all Griffith) 1992-2002 (all Griffith) 1992-2003 (all Chimaera)
1992-2003 (all Chimaera)
No. produced
2,304 units (all Griffith) 2,304 units (all Griffith) 5,256 units (all Chimaera) 5,256 units (all Chimaera)
Front-engined, Rwd
Front-engined, Rwd Front-engined, Rwd Front-engined, Rwd
V8, ohv, 2v/cyl.
V8, ohv, 2v/cyl. V8, ohv, 2v/cyl. V8, ohv, 2v/cyl.
4280 cc
4988 cc
3948 cc
4546 cc
280 hp
340 hp
240 hp
285 hp
305 lbft
350 lbft
270 lbft
302 lbft
5M 5M 5M
1045 kg
1075 kg
1024 kg
1060 kg
Top speed
161 mph*
161 mph*
158 mph*
160 mph
0-60 mph
4.7 sec*
4.2 sec*
5.2 sec*
4.7 sec
0-100 mph
11.1 sec*
10.2 sec*
13.2 sec*
11.2 sec

* Tested by Autocar
